How to Implement a Watchdog Timer in Your PCB Design

 Watchdog timers (WDT) are circuits that trigger automatic system resets to recover from unexpected software or hardware faults in embedded electronics preventing system lockup or freeze.

This article provides a step-by-step guide on how to implement a fail-safe timer in PCB designs using dedicated microcontroller modules or discrete logic. Circuits to connect and configure external components are covered to safely automate resets ensuring reliable operations.

WDT Operating Principles

A watchdog timer is configured to periodically trigger electrical pulses at pre-determined intervals unless continuously reset by the primary software/firmware flow beforehand. If the main controller program flow stalls or crashes preventing the periodic reset of the WDT, it will eventually overflow activating the timer’s output pin.

This pin can be connected to the external or integrated hardware reset input present on most microcontrollers that forces a full system restart returning operation to a known good software initialization state after any unforeseen fault event.

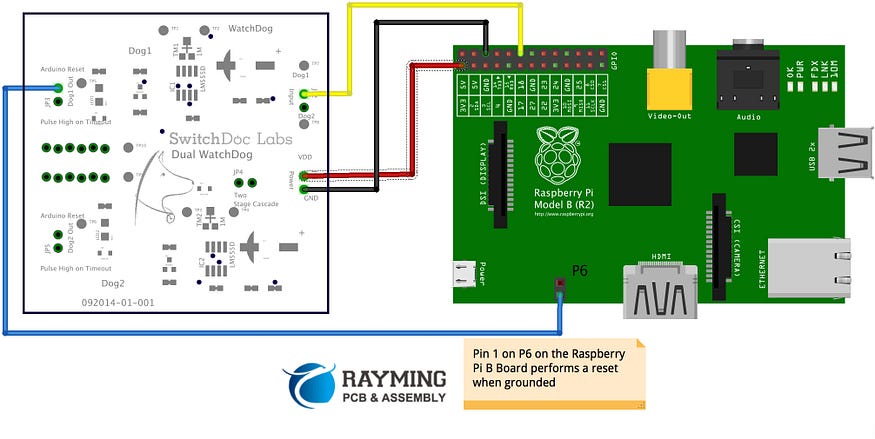

[Figure showing basic operating principle of a watchdog timer module]

Key advantages over manual resets include:

• Swift automated recovery independent of stalled code flow
• No external intervention needed enabling deployment in remote equipment
• Option to enter fail safe modes or safe states upon watchdog fault before restart

So WDT technology delivers self-correcting resilience.

Microcontroller Integrated WDT Modules

Many modern microcontroller units integrate one or more watchdog timer modules internally that equip systems with built-in recovery capabilities:

Dedicated Module — Self-contained timer block is clocked independently allowing configuration of timeout period from milliseconds up to minutes matched against system reset requirements.

Triggers Reset — Specialized WDT recovery pin connects internally to the MCU reset circuit automatically. So on overflow, the module directly forces entire chip restart without external intervention.

Minimal Components — Integrated configuration registers allow enable/disable, timing adjustment, trigger action setup eliminating most external discretes otherwise needed.

Software Integration — WDT kick function written into main program code flow resets module periodically to continually avert timeout ensuring SW health.

So internal units provide reliable and convenient system protection at marginal cost.

External Watchdog ICs

For processors lacking sufficient internal watchdog provisions or where independent external monitoring is preferred, dedicated timer management ICs can be deployed:

Package Options — Choose among SOT23–5, SOIC-8 or TSSOP-14 packages depending on features/space needs with supply voltages from 1.8V to 5.5V. Larger particles offer multiple channels.

Configurability — Adjustable or fixed time-out periods with up to minutes range together with manual or electrical trigger modes cater to different reliability objectives.

Monitoring — Separate supply and clock domains with fault notification outputs ensure robust oversight should primary Domain risks materialize. Heartbeat check-ins between host MCU and Watchdog IC provide health indication.

System Interface — Simple digital logic integration oversees MCU activity resetting countdown on periodic receipt of alive pulses or else forcing dedicated reset pin activation after delays expire reviving unresponsive processors.

So discrete WDT ICs bolster resilience even on processors lacking native safety provisions.

Implementation Factors

Successfully deploying either internal or external watchdogs relies on four main factors during PCB implementation:

Trigger Timing — Set expiration periods allowing for maximum expected software latency margins. Too short risks premature needless resets while overlong delays system recovery losing data.

Clock Independence — Separate watchdog clock domains prevent stalled system clocks impacting supervision. A dedicated oscillator or RTC source works for External ICs while internal WDT modules leverage proprietary fail-safe clocking.

Reliable Reset — Low impedance paths to reset pins must assert signals positively. Verify reset duration meets microcontroller requirements for complete reboot.

Software Integration — Final factor is configuring kick instructions at optimal checkpoints in application software flows to continually refresh watchdog well within trigger periods to preempt unwarranted system recovery events.

Carefully applying these considerations ensures watchdogs deliver robust resilience improvements for mission-critical applications.

External Kick Circuits

Some scenarios demand forcing watchdog test kicks externally to validate reset paths or simulate fault injection assisting longer term reliability testing:

Manual Inputs — Connect push buttons to timer inhibition inputs allowing manual timer reset kicks at convenient intervals to avoid automated timeout trips verifying reset connectivity.

Test Controller — For rigorous reliability validation regimes, connect automated test sequencers to force variable duration watchdog deactivation sequences proactively introducing fault exposures while monitoring system recovery metrics gathering qualification data.

Voltage Checks — Analog voltage supervisors also link externally confirming operating thresholds remain within nominal window ranges otherwise initiating kicks to prevent noisy irregular supplies inadvertently disrupting microcontroller programming flows before resetting clocks.

So properly designed interfaces help strategically exercise watchdog test modes.

Layout Considerations

PCB physical layout also influences watchdog effectiveness especially avoiding faults that themselves obstruct resets during crashes:

Supply Microcuts — WDT modules need clean regulated voltage requiring thorough de-coupling placements and uninterrupted low impedance connections to generator sources using multiple vias/stitching traces on inner layers.

EMI Shielding — Guard voltage and timing/control signal paths against electromagnetic interference which may distort critical kick pulses or trigger thresholds especially on exposed outer layers.

Signal Integrity — Avoid impedance discontinuities on reset lines that reflect waveforms reducing integrity. Carefully match trace widths to target far-end impedance driving reset pin maximizing edge sharpness.

Test Points — Include voltage and logic test pads discretely branched allowing safe monitoring of supervisor inputs plus MCU reset acknowledgements through bring up validating full oversight signal chains.

So purposeful PCB layout precautions reinforce robust WDT functionality shielding external threats that themselves jeopardize fail-safe protections.

Conclusion

Implementing hardware watchdogs either via dedicated internal timer modules integrated on advanced microcontrollers or deploying standalone watchdog supervision ICs forms a key pillar for enhancing system reliability against unexpected faults.

Their automated reset signaling prevents indefinite lockup allowing swift recovery complementing software domain techniques like exception handling and redundancy. When thoughtfully configured matching reliable reset assertions with optimal trigger periods synchronized against application flow kick instructions, watchdog timers deliver vital fail-safe protections for mission critical embedded PCB designs.
