Introduction to Multilayer PCB Technology
Multilayer printed circuit boards (PCBs) represent one of the most sophisticated achievements in modern electronics manufacturing. These complex assemblies consist of multiple conductive layers separated by insulating materials, creating three-dimensional electrical pathways that enable compact, high-performance electronic devices. As electronic systems become increasingly complex and miniaturized, the demand for advanced multilayer PCB manufacturing capabilities continues to grow exponentially.
The evolution of multilayer PCB technology has been driven by the relentless pursuit of higher component density, improved signal integrity, and enhanced electromagnetic compatibility. Modern smartphones, computers, automotive control units, and aerospace systems all rely heavily on multilayer PCBs to achieve their remarkable functionality within compact form factors. Understanding the manufacturing capabilities and limitations of multilayer PCBs is crucial for engineers, designers, and procurement professionals working in today's technology-driven industries.
Fundamental Structure and Design Principles

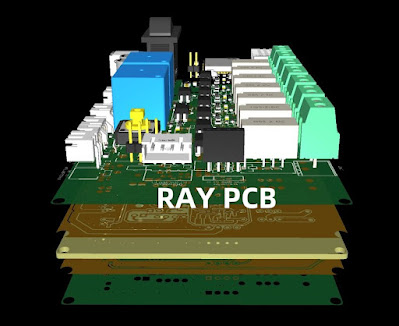

Layer Stack-up Architecture
Multilayer PCBs typically range from four layers to over 40 layers, with each additional layer providing increased routing density and functionality. The basic structure consists of alternating conductive copper layers and insulating dielectric materials, bonded together under high temperature and pressure to form a unified assembly.
The most common multilayer configurations include:
| Layer Count | Typical Applications | Manufacturing Complexity |
|---|---|---|
| 4-6 layers | Consumer electronics, basic industrial controls | Low to Medium |
| 8-12 layers | Computer motherboards, telecommunications equipment | Medium |
| 14-20 layers | High-speed digital systems, advanced networking | High |
| 22+ layers | Aerospace, military, high-performance computing | Very High |
Signal Layer Management
Effective signal layer management is critical for multilayer PCB performance. Signal layers are typically organized into pairs, with each high-speed signal layer adjacent to a reference plane (power or ground). This configuration provides controlled impedance, reduces electromagnetic interference, and improves signal integrity.
The standard layer stack-up follows specific principles:
- Ground and power planes provide reference for signal layers
- Signal layers are separated by dielectric materials with consistent thickness
- Critical signals are routed on inner layers for better protection
- Outer layers are often reserved for components and less critical signals
Manufacturing Process Overview
Substrate Preparation and Core Materials
The multilayer PCB manufacturing process begins with the selection and preparation of core materials. Modern manufacturing facilities utilize various substrate materials, each offering specific electrical, thermal, and mechanical properties suited to different applications.
Common core materials include:
| Material Type | Dielectric Constant | Thermal Properties | Cost Factor |
|---|---|---|---|
| FR-4 Standard | 4.2-4.8 | Standard thermal performance | Low |
| High-Frequency FR-4 | 3.8-4.2 | Enhanced thermal stability | Medium |
| Rogers Materials | 2.2-10.2 | Superior high-frequency performance | High |
| Polyimide | 3.1-3.5 | Excellent thermal resistance | High |
| PTFE-based | 2.0-2.2 | Ultra-low loss at high frequencies | Very High |
Layer Lamination Technology
The lamination process represents the heart of multilayer PCB manufacturing. Modern facilities employ sophisticated lamination presses capable of applying precise temperature, pressure, and time profiles to ensure optimal bonding between layers. The process typically involves several critical stages:
Pre-preg Preparation: Pre-impregnated fiberglass cloth (pre-preg) serves as the bonding agent between copper layers. The resin content, flow characteristics, and thickness of pre-preg materials must be carefully controlled to achieve consistent results.
Stack-up Assembly: Layers are precisely aligned using optical alignment systems and specialized tooling. Registration accuracy is typically maintained within ±0.0003 inches (±0.0076mm) for high-density designs.
Lamination Cycle: The assembled stack undergoes a carefully controlled heating and cooling cycle under pressure. Typical lamination parameters include temperatures of 350-400°F (175-200°C) and pressures of 300-500 PSI, maintained for specific durations based on board thickness and material requirements.
Advanced Manufacturing Capabilities
High-Density Interconnect (HDI) Technology
Modern multilayer PCB manufacturing capabilities include advanced HDI technologies that enable unprecedented component density and miniaturization. HDI techniques include:
Microvias: Laser-drilled vias with diameters as small as 0.002 inches (0.05mm) enable connections between adjacent layers without consuming space throughout the entire board thickness.
Buried and Blind Vias: These specialized via types connect specific layer pairs, optimizing routing density and signal integrity. Manufacturing facilities can produce multiple via types within a single board design.
Sequential Build-up: Advanced facilities can add additional layers to a core structure through sequential lamination processes, enabling complex interconnect schemes and ultra-high layer counts.
Precision Manufacturing Tolerances
State-of-the-art multilayer PCB manufacturing facilities achieve remarkable precision across multiple parameters:
| Parameter | Standard Tolerance | High-Precision Capability |
|---|---|---|
| Trace Width | ±0.001" (±0.025mm) | ±0.0005" (±0.013mm) |
| Via Diameter | ±0.0005" (±0.013mm) | ±0.0002" (±0.005mm) |
| Layer Registration | ±0.002" (±0.05mm) | ±0.0005" (±0.013mm) |
| Board Thickness | ±0.004" (±0.1mm) | ±0.002" (±0.05mm) |
| Impedance Control | ±10% | ±5% |
Surface Finish Technologies
Modern manufacturing facilities offer various surface finish options to protect copper traces and provide optimal soldering characteristics:
HASL (Hot Air Solder Leveling): Traditional finish providing good solderability at low cost, suitable for through-hole and larger surface-mount components.
ENIG (Electroless Nickel Immersion Gold): Premium finish offering excellent corrosion resistance, flat surface profile, and compatibility with fine-pitch components.
OSP (Organic Solderability Preservative): Environmentally friendly option providing good solderability for most applications while maintaining cost-effectiveness.
Immersion Silver: Offers excellent electrical properties and solderability while providing a cost-effective alternative to ENIG for many applications.
Quality Control and Testing Capabilities
Electrical Testing Methodologies
Comprehensive electrical testing ensures that multilayer PCBs meet specification requirements and function reliably in their intended applications. Modern manufacturing facilities employ multiple testing approaches:
In-Circuit Testing (ICT): Automated test systems verify continuity, isolation, and component values using bed-of-nails fixtures. This testing method can identify manufacturing defects with high accuracy and throughput.
Flying Probe Testing: Flexible testing systems use movable probes to verify electrical characteristics without requiring custom fixtures. This approach is particularly valuable for prototype and low-volume production runs.
Boundary Scan Testing: Advanced digital boards incorporate boundary scan test capabilities, enabling comprehensive functional testing through standardized test interfaces.
Impedance and Signal Integrity Verification
High-speed multilayer PCBs require precise impedance control and signal integrity verification. Manufacturing facilities utilize specialized equipment to measure and verify:
- Single-ended impedance values
- Differential pair impedance matching
- Crosstalk characteristics
- Time domain reflectometry (TDR) analysis
- S-parameter measurements for high-frequency applications
Microsection Analysis
Physical cross-sectioning provides detailed insight into multilayer PCB construction quality. Automated microsection systems can evaluate:
| Analysis Parameter | Specification Range | Typical Capability |
|---|---|---|
| Copper Thickness | 0.5-4.0 oz/ft² | ±0.1 oz/ft² accuracy |
| Dielectric Thickness | 0.002-0.020" | ±0.0005" measurement |
| Via Fill Quality | 80-100% fill | 95% minimum typical |
| Layer Registration | ±0.003" maximum | ±0.001" typical |
Material Selection and Properties
Dielectric Material Characteristics
The selection of appropriate dielectric materials significantly impacts multilayer PCB performance, reliability, and cost. Modern manufacturing capabilities support a wide range of materials optimized for specific applications:
Standard FR-4: Glass-reinforced epoxy resin providing good mechanical properties and cost-effectiveness for general applications. Typical properties include a glass transition temperature (Tg) of 130-140°C and dielectric constant of 4.2-4.8.
High-Tg FR-4: Enhanced epoxy formulations with glass transition temperatures exceeding 170°C, providing improved thermal reliability for demanding applications.
Polyimide Materials: Flexible and rigid polyimide substrates offer exceptional thermal stability and chemical resistance, with continuous operating temperatures up to 200°C.
Low-Loss Materials: Specialized dielectric materials with reduced dielectric loss tangent values enable high-frequency signal transmission with minimal attenuation.
Copper Foil Specifications
Copper foil selection impacts both electrical performance and manufacturing yield. Available options include:
| Copper Type | Surface Treatment | Typical Applications |
|---|---|---|
| Electrodeposited (ED) | Smooth surface | High-frequency applications |
| Rolled Annealed (RA) | Matte surface | Standard applications |
| Reverse Treat (RTF) | Chemically treated | Enhanced adhesion |
| Very Low Profile (VLP) | Ultra-smooth | Microwave applications |
Design for Manufacturing Considerations
Layer Count Optimization
Determining the optimal layer count requires balancing performance requirements, cost constraints, and manufacturing complexity. Key considerations include:
Signal Integrity Requirements: High-speed digital signals require controlled impedance environments, typically necessitating dedicated reference planes and additional layers.
Power Distribution: Complex systems may require multiple power and ground planes to maintain clean power delivery and minimize electromagnetic interference.
Routing Density: Component placement and interconnect requirements directly influence the minimum layer count needed to complete all necessary connections.
Thermal Management: Additional layers can provide thermal spreading and heat dissipation pathways, particularly important for high-power applications.
Manufacturing Constraints and Limitations
Understanding manufacturing limitations is crucial for successful multilayer PCB design. Critical constraints include:
Aspect Ratio Limitations: The ratio of board thickness to via diameter affects manufacturing yield and reliability. Most facilities can achieve aspect ratios up to 12:1 for standard processes, with specialized processes supporting ratios up to 20:1.
Minimum Feature Sizes: Trace width, spacing, and via size limitations vary based on layer count and manufacturing capability. High-layer-count boards typically require larger minimum features due to registration and processing challenges.
Impedance Control Tolerances: Achieving tight impedance control becomes more challenging as layer count increases due to accumulated tolerances in dielectric thickness and copper weight variations.
Advanced Manufacturing Technologies
Sequential Lamination Processes
Advanced multilayer PCB manufacturing employs sequential lamination techniques to achieve ultra-high layer counts and complex interconnect structures. This process involves:
Core Fabrication: Initial core sections are fabricated with multiple layers and processed through drilling, plating, and patterning operations.
Build-up Processing: Additional layers are sequentially added through lamination, drilling, and metallization processes. Each build-up cycle can add 2-4 additional layers.
Registration Maintenance: Sophisticated optical alignment systems maintain layer-to-layer registration accuracy throughout the sequential build-up process.
Embedded Component Technology
Cutting-edge manufacturing facilities can embed passive and active components within multilayer structures, providing:
- Reduced board footprint and thickness
- Improved electrical performance through shorter interconnects
- Enhanced reliability through protected component placement
- Increased functional density for advanced applications
Flexible-Rigid Construction
Modern multilayer PCB manufacturing capabilities include flexible-rigid constructions that combine the benefits of flexible interconnects with rigid board sections. These hybrid structures enable:
Three-Dimensional Packaging: Flexible sections allow boards to fold and conform to complex mechanical constraints while maintaining electrical connectivity.
Enhanced Reliability: Elimination of connectors and cables reduces failure points and improves system reliability.
Weight and Space Reduction: Integrated flexible-rigid designs minimize overall system volume and weight compared to traditional interconnect approaches.
Industry-Specific Capabilities
Automotive Electronics Manufacturing
Automotive multilayer PCBs require specialized manufacturing capabilities to meet stringent reliability and environmental requirements:
Temperature Cycling: Boards must withstand extreme temperature variations from -40°C to +150°C without degradation.
Vibration Resistance: Enhanced via fill processes and reinforced structures ensure reliability under constant vibration conditions.
Contamination Control: Automotive applications require stringent cleanliness standards to prevent ionic contamination and ensure long-term reliability.
Aerospace and Military Applications
High-reliability applications demand advanced manufacturing capabilities and extensive quality controls:
| Requirement Category | Specification | Manufacturing Impact |
|---|---|---|
| Operating Temperature | -55°C to +125°C | Specialized materials required |
| Vibration Resistance | MIL-STD-810 compliance | Enhanced mechanical design |
| Outgassing | NASA standards | Low-outgassing materials only |
| Traceability | Full material genealogy | Comprehensive documentation |
Medical Device Manufacturing
Medical multilayer PCBs require biocompatible materials and processes that meet FDA regulations:
Biocompatibility: Materials must pass ISO 10993 testing for biological evaluation of medical devices.
Sterilization Compatibility: Boards must withstand various sterilization methods including gamma radiation, ethylene oxide, and steam autoclave.
Cleanliness Standards: Manufacturing environments must maintain controlled contamination levels throughout the production process.
Cost Optimization Strategies
Design-Manufacturing Trade-offs
Effective cost optimization requires understanding the relationship between design complexity and manufacturing costs:
Layer Count Impact: Manufacturing costs increase exponentially with layer count due to yield considerations and process complexity. Optimizing layer count through efficient design practices can significantly reduce costs.
Via Technology Selection: Through-hole vias are less expensive than blind/buried vias, but may require additional layers for routing. Careful analysis of via technology trade-offs can optimize overall costs.
Material Selection: Standard materials provide cost advantages over exotic high-performance materials. Using high-performance materials only where necessary can balance performance and cost requirements.
Volume Manufacturing Considerations
Production volume significantly impacts manufacturing approach and cost structure:
| Volume Range | Optimal Manufacturing Approach | Cost Characteristics |
|---|---|---|
| Prototype (1-10) | Flying probe test, flexible processes | High unit cost, fast turnaround |
| Low Volume (10-100) | Semi-automated processes | Medium unit cost |
| Medium Volume (100-1000) | Automated processes, custom tooling | Lower unit cost |
| High Volume (1000+) | Fully automated, optimized processes | Lowest unit cost |
Quality Assurance and Reliability
Statistical Process Control
Advanced multilayer PCB manufacturing facilities implement comprehensive statistical process control (SPC) systems to monitor and maintain quality standards:
Real-Time Monitoring: Critical process parameters are continuously monitored and controlled within specified limits.
Trend Analysis: Statistical analysis identifies process trends before they impact product quality, enabling proactive corrections.
Capability Studies: Regular capability assessments ensure that manufacturing processes meet customer requirements with appropriate margins.
Reliability Testing Programs
Comprehensive reliability testing validates multilayer PCB performance under various stress conditions:
Thermal Cycling: Boards undergo repeated temperature cycling to verify solder joint integrity and component attachment reliability.
Humidity Testing: Extended exposure to high humidity and temperature conditions validates moisture resistance and long-term stability.
Mechanical Stress Testing: Vibration and shock testing ensures that boards can withstand mechanical stresses encountered in their intended applications.
Future Trends and Developments
Emerging Technologies
The multilayer PCB manufacturing industry continues to evolve with emerging technologies and market demands:
Ultra-High-Density Interconnects: Advancing lithography and processing technologies enable even smaller feature sizes and higher routing densities.
Advanced Materials: New dielectric and conductor materials provide improved electrical, thermal, and mechanical properties for next-generation applications.
Additive Manufacturing: 3D printing technologies are beginning to impact PCB manufacturing, particularly for prototyping and specialized applications.
Environmental Considerations
Environmental sustainability is becoming increasingly important in multilayer PCB manufacturing:
Lead-Free Processing: Complete elimination of lead-based materials and processes across all manufacturing operations.
Waste Reduction: Advanced process optimization minimizes material waste and chemical consumption.
Recycling Programs: End-of-life PCB recycling and material recovery programs reduce environmental impact.
FAQ
What is the maximum number of layers that can be manufactured in a multilayer PCB?
Current manufacturing capabilities can produce PCBs with over 40 layers, though most practical applications use between 4-20 layers. The theoretical limit is primarily constrained by drilling aspect ratios, registration accuracy, and cost considerations rather than fundamental technical barriers. Ultra-high layer count boards (30+ layers) are typically used in specialized applications like high-performance computing, telecommunications infrastructure, and aerospace systems where the performance benefits justify the increased complexity and cost.
How does layer count affect manufacturing cost and lead time?
Manufacturing cost increases exponentially with layer count due to several factors: increased material costs, more complex processing steps, lower yields, and additional testing requirements. A typical 4-layer board might cost $10-20, while a 16-layer board could cost $100-300 for the same size. Lead times also increase with complexity, ranging from 3-5 days for simple boards to 3-4 weeks for complex high-layer-count designs. The exact cost impact depends on board size, feature density, materials used, and production volume.
What are the key differences between HDI and traditional multilayer PCB manufacturing?
HDI (High-Density Interconnect) multilayer PCBs use microvias, typically laser-drilled holes smaller than 0.006 inches in diameter, enabling much higher component density. Traditional multilayer boards rely on through-hole vias that penetrate the entire board thickness. HDI manufacturing requires additional process steps including sequential lamination, laser drilling, and specialized plating processes. This results in boards that can have component pitches down to 0.4mm and trace widths as small as 0.002 inches, compared to 0.004-0.006 inches for traditional boards.
How is impedance controlled in multilayer PCB manufacturing?
Impedance control in multilayer PCBs is achieved through precise control of trace geometry, dielectric thickness, and copper thickness. Manufacturing facilities use controlled dielectric materials with consistent properties and maintain tight tolerances on copper plating thickness (typically ±0.0002 inches). Stack-up design software calculates the required trace widths and spacing for target impedance values. During production, impedance test coupons are included on each panel and measured using time-domain reflectometry (TDR) equipment to verify that actual impedance values meet specifications, typically within ±5-10%.
What quality standards and certifications are important for multilayer PCB manufacturing?
Key quality standards for multilayer PCB manufacturing include IPC-A-600 for acceptability criteria, IPC-6012 for rigid PCB specifications, and IPC-2221 for generic design standards. Many facilities maintain ISO 9001 quality management certification, with aerospace and military applications requiring AS9100 or ISO 13485 for medical devices. UL recognition is important for safety-critical applications. Additionally, automotive suppliers typically require TS 16949 certification. High-reliability applications may also require compliance with IPC Class 3 standards, MIL-PRF-31032 for military applications, or NASA standards for space applications.
