The Benefits of Machine-Placed PCB Assembly



Introduction

In the ever-evolving world of electronics manufacturing, efficiency, precision, and reliability are paramount. One of the most significant advancements in this field has been the transition from manual to machine-placed Printed Circuit Board (PCB) assembly. This shift has revolutionized the electronics industry, enabling the production of increasingly complex and miniaturized devices that we rely on in our daily lives. This article will explore the numerous benefits of machine-placed PCB assembly, its impact on the electronics manufacturing industry, and its role in shaping the future of technology.

Understanding PCB Assembly

Before delving into the benefits of machine-placed PCB assembly, it's crucial to understand the basics of PCB assembly and the evolution of assembly techniques.

What is PCB Assembly?

PCB assembly is the process of attaching electronic components to a printed circuit board to create a functional electronic circuit. This process involves several steps, including:

1. Applying solder paste to the board
2. Placing components on the board
3. Soldering components to the board
4. Inspecting and testing the assembled PCB

Evolution of PCB Assembly Techniques

Manual Assembly

Initially, PCB assembly was performed entirely by hand. Skilled technicians would place and solder components onto the board using various hand tools. While this method allowed for customization and small-scale production, it had significant limitations in terms of speed, consistency, and ability to handle complex designs.

Semi-Automated Assembly

As electronics became more complex, semi-automated assembly techniques were developed. These methods combined manual placement of components with automated soldering processes, such as wave soldering for through-hole components.

Fully Automated Machine-Placed Assembly

The advent of surface-mount technology (SMT) and increasingly complex circuit designs led to the development of fully automated machine-placed assembly. This method uses sophisticated machines to place and solder components onto PCBs with high speed and precision.

Machine-Placed PCB Assembly Process

Understanding the machine-placed PCB assembly process is crucial to appreciating its benefits. The process typically involves the following steps:

1. Solder Paste Application

A solder paste stencil is used to apply precise amounts of solder paste to specific areas on the PCB where components will be placed. This is usually done using a solder paste printer or a stencil printer.

2. Component Placement

Automated Pick and Place (P&P) machines are used to place surface-mount components onto the PCB. These machines use computer vision systems and precise robotic arms to pick up components from reels or trays and place them accurately on the board.

3. Reflow Soldering

The PCB with placed components passes through a reflow oven. The oven's carefully controlled temperature profile melts the solder paste, creating permanent connections between the components and the board.

4. Automated Optical Inspection (AOI)

After reflow, the assembled PCB undergoes AOI to check for defects such as missing components, incorrect placements, or solder joint issues.

5. Through-Hole Component Insertion

For boards that include through-hole components, these are often inserted by separate machines or manually after the SMT process.

6. Wave Soldering or Selective Soldering

Through-hole components are soldered using either wave soldering for boards with many through-hole components or selective soldering for boards with a mix of SMT and through-hole components.

7. Final Inspection and Testing

The fully assembled PCB undergoes final inspection and functional testing to ensure it meets all quality and performance requirements.

Benefits of Machine-Placed PCB Assembly

Machine-placed PCB assembly offers numerous advantages over manual assembly methods. Let's explore these benefits in detail:

1. Increased Speed and Efficiency

Rapid Component Placement

Modern Pick and Place machines can place thousands of components per hour, dramatically reducing assembly time compared to manual methods.

Continuous Operation

Automated assembly lines can operate 24/7 with minimal downtime, significantly increasing production capacity.

Reduced Labor Requirements

While skilled technicians are still needed to operate and maintain the equipment, the overall labor requirements are substantially reduced.

2. Enhanced Precision and Accuracy

Micron-Level Placement Accuracy

Machine-placed assembly can achieve placement accuracies of 50 microns or less, essential for working with fine-pitch and ultra-fine-pitch components.

Consistent Solder Joints

Automated solder paste application and reflow processes result in more consistent and reliable solder joints.

Reduced Human Error

Automation minimizes errors associated with manual handling and placement of components.

3. Improved Quality and Reliability

Consistent Production Quality

Machine-placed assembly ensures consistent quality across large production runs, with minimal variation between boards.

Reduced Defect Rates

Automated processes, combined with in-line inspection systems, significantly reduce defect rates compared to manual assembly.

Enhanced Durability

Precise component placement and consistent solder joints contribute to the overall durability and longevity of the assembled PCBs.

4. Ability to Handle Complex Designs

Fine-Pitch and Ultra-Fine-Pitch Components

Automated systems can reliably place and solder components with extremely fine lead pitches that would be challenging or impossible to handle manually.

High-Density Designs

Machine-placed assembly enables the production of high-density PCBs with closely spaced components, essential for modern miniaturized electronics.

Mixed Technology Boards

Automated systems can efficiently handle boards that combine surface-mount and through-hole technologies.

5. Cost-Effectiveness in High-Volume Production

Reduced Labor Costs

While the initial investment in automated equipment is significant, the reduced labor requirements lead to lower per-unit costs in high-volume production.

Improved Yield Rates

Higher accuracy and consistency result in improved yield rates, reducing waste and rework costs.

Faster Time-to-Market

Rapid assembly and reduced error rates can significantly shorten production cycles, allowing for faster time-to-market for new products.

6. Enhanced Traceability and Process Control

Real-Time Monitoring

Automated assembly systems provide real-time data on production processes, enabling quick identification and resolution of issues.

Component Traceability

Machine-placed assembly systems can track individual component placements, enhancing traceability for quality control and regulatory compliance.

Process Optimization

Data collected from automated systems can be analyzed to optimize production processes continuously.

7. Flexibility and Scalability

Quick Changeovers

Modern assembly machines can be quickly reprogrammed for different PCB designs, allowing for flexible production schedules.

Scalable Production

Automated systems can easily scale production up or down to meet changing demand, without the need to hire and train additional staff.

Adaptability to New Technologies

Machine-placed assembly systems can be updated or modified to handle new component types and technologies as they emerge.

Challenges and Considerations

While machine-placed PCB assembly offers numerous benefits, it's important to consider some challenges and limitations:

1. High Initial Investment

Automated assembly equipment requires a significant upfront investment, which can be a barrier for smaller companies or low-volume producers.

2. Maintenance and Upkeep

Sophisticated assembly machines require regular maintenance and occasional repairs, which can be costly and may require specialized technicians.

3. Programming and Setup Time

Each new PCB design requires programming and setup time for the automated equipment, which can be time-consuming for small production runs.

4. Dependency on Technology

Reliance on automated systems can make production vulnerable to equipment failures or software issues.

5. Skill Requirements

While reducing the need for manual assembly skills, automated systems require operators and technicians with different skill sets, including programming and machine maintenance.

Comparing Manual and Machine-Placed PCB Assembly

To better understand the advantages of machine-placed PCB assembly, let's compare it with manual assembly across various aspects:

Aspect
Manual Assembly
Machine-Placed Assembly
Speed
Slow (50-300 components/hour per operator)
Fast (Up to 100,000+ components/hour per machine)
Accuracy
Variable, dependent on operator skill
Highly accurate (±50 microns or better)
Consistency
Varies between operators and over time
Highly consistent across production runs
Handling of Fine-Pitch Components
Challenging, prone to errors
Easily handles ultra-fine-pitch components
Production Volume
Suitable for low volume, high mix
Ideal for high volume, can adapt to high mix
Cost for Low Volume
Lower initial cost
Higher initial cost
Cost for High Volume
Higher per-unit cost
Lower per-unit cost
Flexibility for Design Changes
Highly flexible, easy to adapt
Requires reprogramming, but quick to change over
Quality Control
Relies heavily on operator skill and attention
Integrated inspection systems ensure high quality
Traceability
Limited, often manual record-keeping
Comprehensive digital traceability
Scalability
Limited by availability of skilled labor
Easily scalable with additional machines

Future Trends in Machine-Placed PCB Assembly

As technology continues to advance, machine-placed PCB assembly is evolving to meet new challenges and opportunities:

1. Artificial Intelligence and Machine Learning

AI and ML algorithms are being integrated into assembly systems to optimize component placement, predict maintenance needs, and improve overall efficiency.

2. Industry 4.0 Integration

PCB assembly is becoming part of the broader Industry 4.0 ecosystem, with increased connectivity and data exchange between different stages of the manufacturing process.

3. Advanced Inspection Technologies

New inspection technologies, such as 3D AOI and X-ray inspection, are being integrated into assembly lines for even more thorough quality control.

4. Improved Component Handling

Advancements in component packaging and handling technologies are enabling machines to place ever-smaller and more diverse component types.

5. Sustainable Manufacturing

Machine-placed assembly systems are being designed with sustainability in mind, focusing on energy efficiency and waste reduction.

6. Collaborative Robots (Cobots)

The integration of collaborative robots in PCB assembly is allowing for more flexible production setups that combine the strengths of automated and manual processes.

Best Practices for Implementing Machine-Placed PCB Assembly

To maximize the benefits of machine-placed PCB assembly, consider the following best practices:

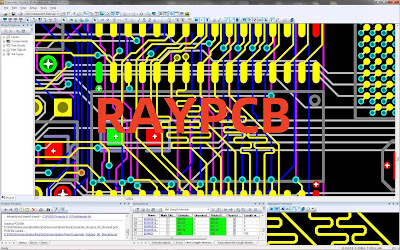

1. Design for Manufacturability (DFM)

Optimize PCB designs for automated assembly by considering factors such as component placement, pad design, and board panelization.

2. Component Selection and Standardization

Choose components that are well-suited for automated placement and strive for standardization across designs where possible.

3. Quality Control Integration

Implement comprehensive quality control measures, including in-line inspection systems and regular process audits.

4. Staff Training and Development

Invest in training programs to ensure staff are skilled in operating, maintaining, and optimizing automated assembly systems.

5. Continuous Improvement

Regularly analyze production data and seek opportunities for process optimization and efficiency improvements.

6. Scalable Implementation

Start with a scalable automation solution that can grow with your production needs over time.

7. Supplier Partnerships

Develop strong partnerships with equipment suppliers and component manufacturers to stay updated on the latest technologies and best practices.

Conclusion

Machine-placed PCB assembly has revolutionized the electronics manufacturing industry, offering unprecedented levels of speed, precision, and reliability. The benefits of this technology extend far beyond the production floor, enabling the creation of increasingly complex and miniaturized electronic devices that drive innovation across numerous sectors.

While the transition to automated assembly requires significant investment and careful planning, the long-term advantages in terms of production capacity, quality, and cost-effectiveness make it an essential consideration for electronics manufacturers of all sizes. As technology continues to advance, machine-placed PCB assembly will play an ever more critical role in shaping the future of electronics, from consumer devices to cutting-edge industrial and medical equipment.

By embracing this technology and implementing best practices, manufacturers can position themselves at the forefront of the industry, ready to meet the challenges and opportunities of the rapidly evolving electronics landscape. As we look to the future, the continued development of machine-placed PCB assembly techniques promises to unlock new possibilities in electronic design and functionality, driving progress and innovation in our increasingly connected world.

Frequently Asked Questions (FAQ)

1. What is the main advantage of machine-placed PCB assembly over manual assembly?

The main advantage of machine-placed PCB assembly is its ability to place components with much higher speed, accuracy, and consistency compared to manual assembly. This leads to increased production efficiency, improved quality, and the ability to handle more complex and miniaturized designs.

2. Is machine-placed PCB assembly suitable for small production runs?

While machine-placed assembly is most cost-effective for large production runs, modern equipment is becoming increasingly flexible and can be cost-effective for smaller runs as well. The suitability depends on factors such as the complexity of the PCB, the available equipment, and the overall production strategy of the company.

3. How does machine-placed assembly impact the cost of PCB production?

Initially, machine-placed assembly requires a significant investment in equipment. However, for medium to high-volume production, it typically reduces overall costs due to increased efficiency, higher yields, and reduced labor requirements. The cost-effectiveness improves as production volume increases.

4. Can machine-placed assembly handle all types of components?

Most modern machine-placed assembly systems can handle a wide range of surface-mount components, including very small and fine-pitch parts. However, some specialized or unusual components may still require manual placement. Through-hole components are often handled separately, either by specialized machines or manual insertion.

5. How does machine-placed assembly affect PCB design considerations?

Machine-placed assembly influences PCB design in several ways. Designers need to consider factors such as component placement for optimal pick-and-place efficiency, pad designs suitable for automated soldering, and board panelization for efficient production. This approach, known as Design for Manufacturability (DFM), helps ensure that PCBs are optimized for automated assembly processes.
